Blueprint Reading: Dimensions and Tolerances, Part 1
- Product ID
- artsbpr4
- Training Time ?
- 45 to 90 minutes
- Language(s)
- English
- Video Format
- Standard Definition
- Required Plugins
- MasteryNet Player
- Lesson Interactions
- 38
- Quiz Questions
- 27
Overview
This training program, Dimensions and Tolerances, is separated into two parts. Both programs are included in the six part series designed to develop abilities needed to accurately locate and interpret dimensions on engineering drawings.
Part 1 in this training identifies the size and/or location for a given part feature; and correctly calculate the tolerance specified for a given part feature.
The entire six part program is based on ANSI standards, and incorporate input from a broad industrial population.
This course is in the Advantage™ format, to read about Advantage™ features click here.
- Install on any SCORM LMS
- Rich multimedia presentation with interactions and quiz
- Print certificate and wallet card
- You have 30 days to complete the course
Audience
Anyone working with engineering drawings.

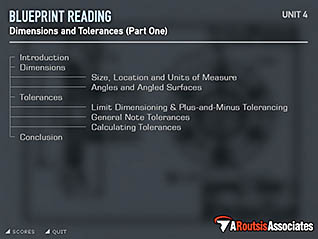

Topics
The course presents the following topical areas:
- Dimensions
- Size, Location and Units of Measure
- Angles and Angled Surfaces
- Tolerances

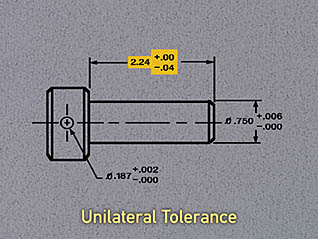

- Limit Dimensioning and Plus-and-Minus Tolerancing
- General Note Tolerances
- Calculating Tolerances
Intended Performance Outcomes
Upon successful completion of this course you will be better prepared to:
- Correctly interpret provided tolerances.
- Appropriately use dimensions and tolerances.
- Properly interpret domestic and international drawings.

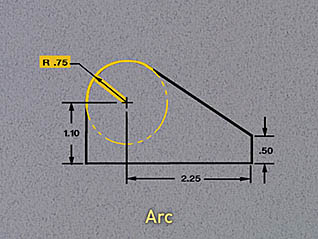

- Identify how angles, arcs, and radii are noted on drawings.
- Be aware of how limits of dimensions are incorporated into a drawing.
- Interpret both the upper and lower limits of a dimension.
- Recognize tolerances listed within a general note of a drawing.
- Calculate the largest and smallest acceptable sizes.
